MECHANICAL fixed ceiling manipulator

The mechanical manipulator is distinguished by its rigid arms, ideal for statically and precisely handling off-center loads.

Description

This versatile manipulator covers a wide range of capacities, from 20 kg to 1000 kg. It is also equipped with pneumatic brakes and anti-fall and anti-tilting safety systems, accommodating most gripping tools in production.



The accumulation tank ensures available air for component storage, even in the event of a sudden interruption of pneumatic power.


This manipulator is customizable in terms of radius and vertical travel and is available upon request in ATEX and 4.0 versions.

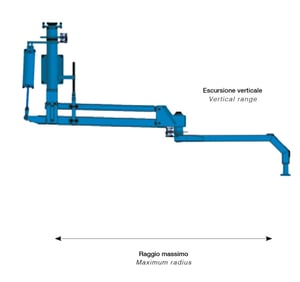

DIS.VENEZIA_1
GRAF.VENEZIA_1

Tecnichal data

1. Supply: 7-bar compressed air
2. Max load capacity: 200 kg tool not included
3. Mass: 220 Kg
4. Axis 1 rot. angle: 360°
5. Axis 12 rot. angle: 330°
6. Vert range: 1850 mm
7. Max radius: 4000 mm
8. Min radius: 700 mm
9. Standard colour:  RAL 5015

10. Platform base:  800x800x30 mm
